Product Details:
| Minimum Order Quantity | 2 Piece |
| Pressure | 7-10 bar, 6-7 bar, 3-6 bar |
| Material | Stainless Steel |
| Brand | SAINATH FIRE INDIA |
| Capacity | ALL IN ONE TYPE 100% |
| Color | N/Y |
| Inlet Size | 2",21/2",3",4",6" |
| Length | as per Order |
| Size/Dimension | 2",21/2",3",4",6" |
| Surface Finishing | N |
| Weight | 10-50 |
| Working Pressure | 7KG/CM2 |
Medium Expansion Foam pourerMedium Expansion Foam Branch Pipe
Technical Specification :-
|
Model |
SNF-600-LPM |
SNF-1200-LPM |
SNF-1800-LPM |
|
Nozzle Quantity |
3 |
6 |
9 |
|
Dimension A |
590 |
905 |
920 |
|
Dimension B |
302 |
420 |
520 |
|
Dimension C |
382 |
565 |
648 |
|
Inlet Flange/ Coupling size |
2 " BSP Male inlel/ 2 " BSP flange |
2 1/2" BSP Male / 2 1/2" BSP flange |
3" BSP Male / 3" BSP flange |
|
Pipework |
Stainless steel |
||
|
Nozzles |
Brass / Gunmetal Natural Finish |
||
|
Pourer Tube |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Internals |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Screws/Nuts/Washers |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Approximate Weight |
8.5 kg |
16 kg |
24.5 kg |
|
K Factor |
380 |
759 |
1138 |
|
Operating Pressure Range |
1.5 to3 bar |
1.5 to3 bar |
1 .5to3 bar |
|
Flow Rate @2.5 bar |
600L/Min |
1200L/Min |
1800 L/Min |
|
Typical Expansion Ratio at 3% |
25 to 36:1 Or as per demand |
25 to 36:1 Or as per demand |
25 to 36:1 Or as per demand |
|
|
|||
Additional Information:
Product Details:
| Minimum Order Quantity | 1 Piece |
| Material | Ss,Mild Steel |
| Model Name/Number | 4 In On India |
| Nozzle Diameter | Stand.. |
| Usage/Application | Industrial |
| Design Type | Standard |
| Brand | All In One |
| Model | 121200 |
| Body Material | Ss,Mild Steel |
| Dimension | All Type |
| Color | Yellow |
| Inlet | 2",21/2",3",4",6" FLANG & 63MM MALE INST. |
| Outlet | As Per Req. |
| Accuracy | All In Indian |
| Auto Off Function | Yes |
| Battery Life | 6 Month |
| Warranty | 6 Month |
| Capacity | 225 LPM TO 5000 LPM |
| Inlet Size | 2" , 21.\/2" , 3" , 4" & 6" INCH |
| Length | AS PER REQ. SIZE |
| I Deal In | New Only |
| Weight | 12 KG TO 70 KG |
| Working Pressure | 7 KG/CM2 |
| Country of Origin | Made in India |
MEFG Foam Pourer
Technical Specification :-
|
Model |
SNF-600-LPM |
SNF-1200-LPM |
SNF-1800-LPM |
|
Nozzle Quantity |
3 |
6 |
9 |
|
Dimension A |
590 |
905 |
920 |
|
Dimension B |
302 |
420 |
520 |
|
Dimension C |
382 |
565 |
648 |
|
Inlet Flange/ Coupling size |
2 " BSP Male inlel/ 2 " BSP flange |
2 1/2" BSP Male / 2 1/2" BSP flange |
3" BSP Male / 3" BSP flange |
|
Pipework |
Stainless steel |
||
|
Nozzles |
Brass / Gunmetal Natural Finish |
||
|
Pourer Tube |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Internals |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Screws/Nuts/Washers |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Approximate Weight |
8.5 kg |
16 kg |
24.5 kg |
|
K Factor |
380 |
759 |
1138 |
|
Operating Pressure Range |
1.5 to3 bar |
1.5 to3 bar |
1 .5to3 bar |
|
Flow Rate @2.5 bar |
600L/Min |
1200L/Min |
1800 L/Min |
|
Typical Expansion Ratio at 3% |
25 to 36:1 Or as per demand |
25 to 36:1 Or as per demand |
25 to 36:1 Or as per demand |
Additional Information:
Product Details:
| Minimum Order Quantity | 2 Piece |
| Size | 2",21/2",3",4" |
| Material | Stainless Steel |
| Usage/Application | IN FIRE FIGHTING |
| Model | SNF6710 |
| Body Material | SS316,SS304 & MILD STEEL |
| Capacity | 200 to 200 lpm |
| Color | R/Y |
| Inlet Size | 2,21/2",3",4" |
| Length | 600MM TO 3000MM |
| Brand | SAINATH FIRE |
High Expansion Foam Generator
Technical Specification :-
Model | SNF-600-LPM | SNF-1200-LPM | SNF-1800-LPM |
Nozzle Quantity | 3 | 6 | 9 |
Dimension A | 590 | 905 | 920 |
Dimension B | 302 | 420 | 520 |
Dimension C | 382 | 565 | 648 |
Inlet Flange/ Coupling size | 2 " BSP Male inlel/ 2 " BSP flange | 2 1/2" BSP Male / 2 1/2" BSP flange | 3" BSP Male / 3" BSP flange |
Pipework | Stainless steel | ||
Nozzles | Brass / Gunmetal Natural Finish | ||
Pourer Tube | Stainless Steel | Stainless Steel | Stainless Steel |
Internals | Stainless Steel | Stainless Steel | Stainless Steel |
Screws/Nuts/Washers | Stainless Steel | Stainless Steel | Stainless Steel |
Approximate Weight | 8.5 kg | 16 kg | 24.5 kg |
K Factor | 380 | 759 | 1138 |
Operating Pressure Range | 1.5 to3 bar | 1.5 to3 bar | 1 .5to3 bar |
Flow Rate @2.5 bar | 600L/Min | 1200L/Min | 1800 L/Min |
Typical Expansion Ratio at 3% | 25 to 36:1 Or as per demand | 25 to 36:1 Or as per demand | 25 to 36:1 Or as per demand |
Typical Foam Output @ 2.5 bar at 3% | 24 M3/Min | 50 M3/Min | 70 M3/Min |
Additional Information:
Product Details:
| Minimum Order Quantity | 100 Piece |
| Material | MILD STEEL , SS304 , SS316 |
| Size | 3/4 inch |
| Brand | Sainath Fire |
| Thread Size | 63mm or 2/12 |
| Application | Industrial |
| Capacity | ALL TYPE |
| Inlet Size | 63MM MALE INST. |

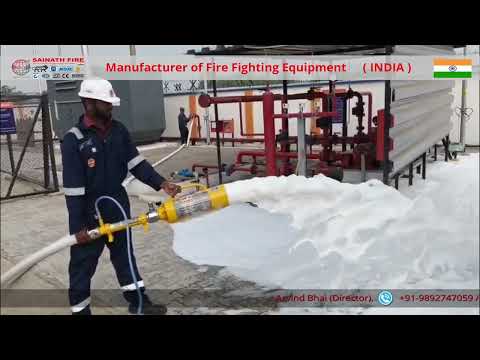

Medium Expansion Foam Generator
Material : Stainless Steel , SS304 & SS316
Inlet : BS 63MM Male Coupling
Flow Rate : 225 LPM-Throw Range =5 TO 9 MTR.
Flow Rate : 450 LPM-Throw Range =7 TO 12 MTR.
Pressure : 7 Bar or KG.
Features:
Medium Expansion Foam Nozzle
All size and all type MFG.
All type and all Size
High grade quality manufacturing
100 % quality product
Make in india
Additional Information:
Product Details:
| Minimum Order Quantity | 20 Piece |
| Material | AS PER REQ.. |
| Usage/Application | STAINLESS STEEL , MILD STEEL , SS316L |
| Thread Size | 63MM MALE INST. & FLANG TYPE |
| Brand | SAINATH FIRE |
| Capacity | 150 ,200, 250,300,350L400,600, 700, 900, 1000 & 1200 LPM |
| Color | Y / R |
| Inlet Size | 2" , 21/2" , 3" , 4" & (61 |
| Length | STANDARD |
| Working Pressure | 7 KG/CM2 / 12 KG/CM2 |
Medium Expansion Foam pourer
Material : Stainless Steel , SS304 & SS316
Inlet : BS 63MM Male Coupling
Flow Rate : 200 LPM , Flow Rate : 250 LPM
Flow Rate : 300 LPM , Flow Rate : 400 LPM
Flow Rate : 450 LPM , Flow Rate : 600 LPM
Flow Rate : 800LPM , Flow Rate : 1200 LPM
Pressure : 7 Bar or KG.
Features:
Medium Expansion Foam pourer
All size and all type MFG.
All type and all Size
High grade quality manufacturing
100 % Quality product
Make in india
Warranty guarantee 5 year first time in India provide all type foam making equipment spare parts and complete equipment high grade quality...
Additional Information:
Product Details:
| Minimum Order Quantity | 3 Piece |
| Usage/Application | Gas Pipe |
| Material | MILD STEEL,STAINLESS STEEL,SS304,SS316L |
| Pressure | 7-10 bar |
| Size | 63 MM MALE INST. |
| Brand | Sainath Fire |
| Orifice Diameter | 63MM INLET |
| Thread Size | 1/8" TO 2" BSPP/NPT/BSPT |
| Packaging Type | WOODEN TYPE |
Medium Expansion Foam Nozzle
Medium Expansion Foam Generator
Material : Stainless Steel , SS304 & SS316
Inlet : BS 63MM Male Coupling
Flow Rate : 225 LPM-Throw Range =5 TO 9 MTR.
Flow Rate : 450 LPM-Throw Range =7 TO 12 MTR.
Pressure : 7 Bar or KG.
Features:
Medium Expansion Foam Nozzle
All size and all type MFG.
All type and all Size
High grade quality manufacturing
100 % quality product
Make in india
Additional Information:
Product Details:
| Minimum Order Quantity | 2 Piece |
| Material | 1199 |
| Usage/Application | FIRE FIGHTING SAFETY |
| Body Material | SS,MILD STEEL |
| Inlet | 63MM,2",21/2",3",4" |
| Outlet | 4",6",8",10",12",15",19",22" or as per requirement |
| Test Pressure | 7 to 10 kg. |
| Brand | Sainath Fire ( Make In India) |
| Capacity | as per Req.. |
| Color | FIRE RED,SS,YELLOW & NATURAL STEEL |
| Inlet Size | 2",21/2",3"& 4" |
| Length | ASP ER REQ. |
| Weight | 10KG,15KG,20KG,25KG,30KG,40KG,70KG,80KG,100KG |
| Working Pressure | 7KG/CM2 |
Mex Bund Pourers
Technical Specification :-
Model Type | SNF-600-LPM | SNF-1200-LPM | SNF-1800-LPM |
Nozzle Quantity | 3 | 6 | 9 |
Dimension A | 590 | 905 | 920 |
Dimension B | 302 | 420 | 520 |
Dimension C | 382 | 565 | 648 |
Inlet Flange/ Coupling size | 2 " BSP Male inlel/ 2 " BSP flange | 2 1/2" BSP Male / 2 1/2" BSP flange | 3" BSP Male / 3" BSP flange |
Pipework | Stainless steel | ||
Nozzles | Brass / Gunmetal Natural Finish | ||
Pourer Tube | Stainless Steel | Stainless Steel | Stainless Steel |
Internals | Stainless Steel | Stainless Steel | Stainless Steel |
Screws/Nuts/Washers | Stainless Steel | Stainless Steel | Stainless Steel |
Approximate Weight | 8.5 kg | 16 kg | 24.5 kg |
K Factor | 380 | 759 | 1138 |
Operating Pressure Range | 1.5 to3 bar | 1.5 to3 bar | 1 .5to3 bar |
Flow Rate @2.5 bar | 600L/Min | 1200L/Min | 1800 L/Min |
Typical Expansion Ratio at 3% | 25 to 36:1 Or as per demand | 25 to 36:1 Or as per demand | 25 to 36:1 Or as per demand |
Typical Foam Output @ 2.5 bar at 3% | 24 M3/Min | 50 M3/Min | 70 M3/Min |
Additional Information:
Product Details:
| Minimum Order Quantity | 2 Piece |
| Capacity | 1000 |
| Material | Stainless Steel |
| Usage/Application | Inlet 2",2 1/2" BSP Male (Flang Type & 63 mm Male Inst. & Other Options ) |
| Body Material | SS304,SS316,MILS STEEL AS PER REQ.. |
| Inlet | 63MM,2",2 1/2",3",4" MALE INST. & FLANG TYPE. |
| Outlet | Optimum Flow Rate @ 2",2 1/2 Bar 1200 LPM (320 GPM) |
| Test Pressure | 7KG/CM2 |
| Brand | SAINATH FIRE ( MAKE IN INDIA) |
| Color | R / Y |
MX Bund Foam Poure
Technical Specification :-
Model | SNF-600-LPM | SNF-1200-LPM | SNF-1800-LPM |
Nozzle Quantity | 3 | 6 | 9 |
Dimension A | 590 | 905 | 920 |
Dimension B | 302 | 420 | 520 |
Dimension C | 382 | 565 | 648 |
Inlet Flange/ Coupling size | 2 " BSP Male inlel/ 2 " BSP flange | 2 1/2" BSP Male / 2 1/2" BSP flange | 3" BSP Male / 3" BSP flange |
Pipework | Stainless steel | ||
Nozzles | Brass / Gunmetal Natural Finish | ||
Pourer Tube | Stainless Steel | Stainless Steel | Stainless Steel |
Internals | Stainless Steel | Stainless Steel | Stainless Steel |
Screws/Nuts/Washers | Stainless Steel | Stainless Steel | Stainless Steel |
Approximate Weight | 8.5 kg | 16 kg | 24.5 kg |
K Factor | 380 | 759 | 1138 |
Operating Pressure Range | 1.5 to3 bar | 1.5 to3 bar | 1 .5to3 bar |
Flow Rate @2.5 bar | 600L/Min | 1200L/Min | 1800 L/Min |
Typical Expansion Ratio at 3% | 25 to 36:1 Or as per demand | 25 to 36:1 Or as per demand | 25 to 36:1 Or as per demand |
Typical Foam Output @ 2.5 bar at 3% | 24 M3/Min | 50 M3/Min | 70 M3/Min |
Additional Information:
Product Details:
| Minimum Order Quantity | 1 Piece |
| Material | New |
| Usage/Application | FIRE SAFETY |
| Brand | SAINATH FIRE |
| Automation Grade | STANLESS STEEL , MILD STEEL |
| Capacity | ALL IN ONE |
| Color | N |
Technical Specification :-
|
Model |
SNF-600-LPM |
SNF-1200-LPM |
SNF-1800-LPM |
|
Nozzle Quantity |
3 |
6 |
9 |
|
Dimension A |
590 |
905 |
920 |
|
Dimension B |
302 |
420 |
520 |
|
Dimension C |
382 |
565 |
648 |
|
Inlet Flange/ Coupling size |
2 " BSP Male inlel/ 2 " BSP flange |
2 1/2" BSP Male / 2 1/2" BSP flange |
3" BSP Male / 3" BSP flange |
|
Pipework |
Stainless steel |
||
|
Nozzles |
Brass / Gunmetal Natural Finish |
||
|
Pourer Tube |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Internals |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Screws/Nuts/Washers |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Approximate Weight |
8.5 kg |
16 kg |
24.5 kg |
|
K Factor |
380 |
759 |
1138 |
|
Operating Pressure Range |
1.5 to3 bar |
1.5 to3 bar |
1 .5to3 bar |
|
Flow Rate @2.5 bar |
600L/Min |
1200L/Min |
1800 L/Min |
|
|
|||
Additional Information:
Product Details:
| Minimum Order Quantity | 1 Piece |
| Material | SS & MILD STEEL |
| Usage/Application | FIRE FIGHTING EQUIPMENT |
| Application | FIRE SAFETY |
| Design Type | Standard |
| Type | Automatic, Manual |
| Brand/Make | SAINATH FIRE |
| Shape | ALL TYPE |
| Brand | SAINATH FIRE |
| Capacity | ALL IN ONE |
| Color | YELLOW / RED |
| Inlet Size | 2", 21/2" ,3" ,4" ,6" |
| Length | AS PER REQ. |
| Working Pressure | 7 KG/CM2 |
| Country of Origin | Made in India |
Technical Specification :-
|
Model |
SNF-600-LPM |
SNF-1200-LPM |
SNF-1800-LPM |
|
Nozzle Quantity |
3 |
6 |
9 |
|
Dimension A |
590 |
905 |
920 |
|
Dimension B |
302 |
420 |
520 |
|
Dimension C |
382 |
565 |
648 |
|
Inlet Flange/ Coupling size |
2 " BSP Male inlel/ 2 " BSP flange |
2 1/2" BSP Male / 2 1/2" BSP flange |
3" BSP Male / 3" BSP flange |
|
Pipework |
Stainless steel |
||
|
Nozzles |
Brass / Gunmetal Natural Finish |
||
|
Pourer Tube |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Internals |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Screws/Nuts/Washers |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Approximate Weight |
8.5 kg |
16 kg |
24.5 kg |
|
K Factor |
380 |
759 |
1138 |
|
Operating Pressure Range |
1.5 to3 bar |
1.5 to3 bar |
1 .5to3 bar |
|
Flow Rate @2.5 bar |
600L/Min |
1200L/Min |
1800 L/Min |
|
Typical Expansion Ratio at 3% |
25 to 36:1 Or as per demand |
25 to 36:1 Or as per demand |
25 to 36:1 Or as per demand |
Additional Information:
Product Details:
| Minimum Order Quantity | 2 Piece |
| Size | 3/16,1/8",1/4" and all size |
| Material | Steel,Mild Steel |
| Usage/Application | Fire Fighting System |
| Pressure | 10to50kg. |
| Thread Size | as per req.. |
| Brand | Sainath Fire |
| Capacity | ALL IN ONE MFG. |
| Inlet Size | 63MM MALE INST. |
| Length | tandard |
| Tank | SS304,316L MOC. |
| Working Pressure | 7KG/CM2 TO 10 KGCM/2 |
| Country of Origin | Made in India |
technical specification:-
make : sainath fire / india
inlet: 63mm male inst. Coupling inlet
outlet : foam discharge net type
material : ss304 moc.
fan blades : aluminium alloy
foam inductor : aluminium
flow : 225 lpm, 250lpm, 265lpm & 315 lpm
working pressure : 2. 5 kgcm2 to 7 kg/cm2
weight : 19 kg.
net : nylon net flexible
foam induction : 3% & 6 %
compact : light weight single handed operation
warranty & guarantee : 2 year 100%
|
operating procedure |
inlet pressure |
total water flow (gpm) |
by-pass flow (gpm) |
expanded foam (m/min) |
expansion |
|
by-pass valve closed |
7 bar |
240 litres/min |
nil |
136 |
500-725 |
|
by-pass valve fully open |
7 bar |
265 litres/min |
100 litres/min |
150 |
800-1100 |
|
by-pass valve fully open |
10 bar |
315 litres/min |
115 litres/min |
200 |
800-1100 |
Additional Information:
Product Details:
| Minimum Order Quantity | 10 Piece |
| Material | SS, MILS STEEL |
| Size | 2" , 21/2" , 3" , 4", 6" |
| Brand | SAINATH FIRE |
| Thread Size | All Type |
| Color | N |
| Weight Kg | 7KG/CM2 |
| Capacity L Min | 225 LPM to 600 LPM |
| Certification | ISO , CE |
| Flow Rate G M | 225 LPM to 600 LPM |
| Inlet Flange | 2", 21/2", 3" , 4" & 6" |
| Model Name/Number | SNF333330 |
| Warranty | 2 Year |
| I Deal In | New Only |
| Operating Pressure | 7KG/CM2 |
Material : Stainless Steel , SS304 & SS316
Inlet : BS 63MM Male Coupling
Flow Rate : 200 LPM , Flow Rate : 250 LPM
Flow Rate : 300 LPM , Flow Rate : 400 LPM
Flow Rate : 450 LPM , Flow Rate : 600 LPM
Flow Rate : 800LPM , Flow Rate : 1200 LPM
Pressure : 7 Bar or KG.
Features:
Medium Expansion Foam pourer
All size and all type MFG.
All type and all Size
High grade quality manufacturing
100 % Quality product
Make in india
Warranty guarantee 5 year first time in India provide all type foam making equipment spare parts and complete equipment high grade quality...
Additional Information:
Product Details:
| Minimum Order Quantity | 2 Piece |
| Material | SS,Mild Steel |
| Nozzle Diameter | 500-725 |
| Usage/Application | FIRE SAFETY |
| Size | STAND... |
| Design Type | Standard |
| Color | all type |
| Application | Chemical Fertilizer Pipe |
| Dimension | all size |
| Brand | SAINATH FIRE |
| Capacity | 500-725,240L as per req. |
| Inlet Size | 63mm,21/2",2" |
| Working Pressure | 7kg/cm2 |
| Country of Origin | Made in India |
Technical specification:
|
Operating procedure |
Inlet pressure |
Total water flow (GPM) |
By-Pass flow (GPM) |
Expanded foam (M¿¿¿/min) |
Expansion |
|
By-Pass valve Closed |
7 bar |
240 litres/min |
nil |
136 |
500-725 |
|
By-Pass valve Fully Open |
7 bar |
265 litres/min |
100 litres/min |
150 |
800-1100 |
|
By-Pass valve Fully Open |
10 bar |
315 litres/min |
115 litres/min |
200 |
800-1100 |
Additional Information:
Product Details:
| Minimum Order Quantity | 6 Piece |
| Size | 2", 21/2" , 3" , 4" & 6" |
| Operating Pressure | 3 to 7kg/cm2 |
| Material | Stainless Steel |
| Brand | SAINATH FIRE |
| Color | N / Y / R |
| Inlet | 2,21/2",3",4" & 6" |
| Outlet | AS PER REQ..ALL TYPE |
| Inlet Flange | AS PER RQ. |
| Test Pressure | 19KG/CM2 |
| Working Pressure | 7 KG/CM2 |
| Warranty | 2 YEAR |
| I Deal In | New Only |
| Country of Origin | Made in India |
| Usage | Industrial |
Technical Specification :-
|
Model |
SNF-600-LPM |
SNF-1200-LPM |
SNF-1800-LPM |
|
Nozzle Quantity |
3 |
6 |
9 |
|
Dimension A |
590 |
905 |
920 |
|
Dimension B |
302 |
420 |
520 |
|
Dimension C |
382 |
565 |
648 |
|
Inlet Flange/ Coupling size |
2 " BSP Male inlel/ 2 " BSP flange |
2 1/2" BSP Male / 2 1/2" BSP flange |
3" BSP Male / 3" BSP flange |
|
Pipework |
Stainless steel |
||
|
Nozzles |
Brass / Gunmetal Natural Finish |
||
|
Pourer Tube |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Internals |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Screws/Nuts/Washers |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Approximate Weight |
8.5 kg |
16 kg |
24.5 kg |
|
K Factor |
380 |
759 |
1138 |
|
Operating Pressure Range |
1.5 to3 bar |
1.5 to3 bar |
1 .5to3 bar |
|
Flow Rate @2.5 bar |
600L/Min |
1200L/Min |
1800 L/Min |
|
Typical Expansion Ratio at 3% |
25 to 36:1 Or as per demand |
25 to 36:1 Or as per demand |
25 to 36:1 Or as per demand |
Additional Information:
Product Details:
| Minimum Order Quantity | 2 Piece |
| Material | Stainless Steel |
| Size | 2",21/2",3",4",6" FLANG & 63MM MALE INST. |
| Brand | Sainath Fire |
| Pressure | 6-7 bar |
| Thread Size | 63MM and As per Requirement Adavanted |
| Color | Yellow |
| Weight Kg | AS PER REQ. |
| Certification | ISO 9001 , CE |
| Flow Rate G M | 225 TO 3500 LPM |
| Inlet Flange | 2",21/2",3",4",6" FLANG & 63MM MALE INST. |
| Model Name/Number | SNF2021252 |
| Size Mm | ALL INE ONE 100% |
| Warranty | 3 YEAR |
| I Deal In | New Only |
| Operating Pressure | 7 KG/CM2 |
| Country of Origin | Made in India |
Material : Stainless Steel , SS304 & SS316
Inlet : BS 63MM Male Coupling
Flow Rate : 200 LPM , Flow Rate : 250 LPM
Flow Rate : 300 LPM , Flow Rate : 400 LPM
Flow Rate : 450 LPM , Flow Rate : 600 LPM
Flow Rate : 800LPM , Flow Rate : 1200 LPM
Pressure : 7 Bar or KG.
Features:
Medium Expansion Foam pourer
All size and all type MFG.
All type and all Size
High grade quality manufacturing
100 % Quality product
Make in india
Additional Information:
Product Details:
| Minimum Order Quantity | 10 Piece |
| Material | Stainless Steel |
| Usage/Application | Fire SAFETY |
| Brand | Sainath Fire |
| Size/Dimension | 65mm,80mm,75mm,90mm |
| Capacity | 300lpm,400lpm,600lpm,800lpm,1200lpm,2000lpm |
| Color | Y/R |
| Inlet Size | 2",21/2",3",4",6" |
| Length | STANDARD.. |
| Working Pressure | 7KG/CM2 |
| Country of Origin | Made in India |
| Open Style | Hinged,Swing,Sliding |
MEFG Medium Expansion Foam Branch Generator
Technical Specification :-
|
Model |
SNF-600-LPM |
SNF-1200-LPM |
SNF-1800-LPM |
|
Nozzle Quantity |
3 |
6 |
9 |
|
Dimension A |
590 |
905 |
920 |
|
Dimension B |
302 |
420 |
520 |
|
Dimension C |
382 |
565 |
648 |
|
Inlet Flange/ Coupling size |
2 " BSP Male inlel/ 2 " BSP flange |
2 1/2" BSP Male / 2 1/2" BSP flange |
3" BSP Male / 3" BSP flange |
|
Pipework |
Stainless steel |
||
|
Nozzles |
Brass / Gunmetal Natural Finish |
||
|
Pourer Tube |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Internals |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Screws/Nuts/Washers |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Approximate Weight |
8.5 kg |
16 kg |
24.5 kg |
|
K Factor |
380 |
759 |
1138 |
|
Operating Pressure Range |
1.5 to3 bar |
1.5 to3 bar |
1 .5to3 bar |
|
Flow Rate @2.5 bar |
600L/Min |
1200L/Min |
1800 L/Min |
|
Typical Expansion Ratio at 3% |
25 to 36:1 Or as per demand |
25 to 36:1 Or as per demand |
25 to 36:1 Or as per demand |
Additional Information:
Product Details:
| Minimum Order Quantity | 1 Piece |
| Material | Stainless Steel |
| Usage/Application | Fire SAFETY |
| Size | 2 inch, 3 inch63mmj male inst., 3 inch |
| Material Used | SteelMild Steel, Steel |
| Brand | Sainath Fire |
| Working pressure | 7 TO 10 KG. |
| Capacity | Flow 225 Lpm & 450 Lpm |
| Color | Y / R |
| Inlet Size | 63mm Male Inst. |
| Length | Stand.. |
| Country of Origin | Made in India |
MEDIUM EXPANSION FOAM GENERATOR
Material : Stainless Steel , SS304 & SS316
Inlet : BS 63MM Male Coupling
Flow Rate : 200 LPM , Flow Rate : 250 LPM
Flow Rate : 300 LPM , Flow Rate : 400 LPM
Flow Rate : 450 LPM , Flow Rate : 600 LPM
Flow Rate : 800LPM , Flow Rate : 1200 LPM
Pressure : 7 Bar or KG.
Features:
Medium Expansion Foam pourer
All size and all type MFG.
All type and all Size
High grade quality manufacturing
100 % Quality product
Make in india
Warranty guarantee 5 year first time in India provide all type foam making equipment spare parts and complete equipment high grade quality...
Welcome to SAINATH FIRE MUMBAI DELHI -INDIA* Supplier Machine all in State INDIA..
Additional Information:
Product Details:
| Minimum Order Quantity | 1 Piece |
| Material | Stainless Steel |
| Brand | SAINATH FIRE |
| Capacity | 100 LTR TO 5000 LTR. |
| Color | YELLOW / FIRE RED |
| Tank | SS , MS |
| Working Pressure | 7 KG/CM2 |
| Country of Origin | Made in India |
Technical Specification :-
|
Model |
SNF-600-LPM |
SNF-1200-LPM |
SNF-1800-LPM |
|
Nozzle Quantity |
3 |
6 |
9 |
|
Dimension A |
590 |
905 |
920 |
|
Dimension B |
302 |
420 |
520 |
|
Dimension C |
382 |
565 |
648 |
|
Inlet Flange/ Coupling size |
2 " BSP Male inlel/ 2 " BSP flange |
2 1/2" BSP Male / 2 1/2" BSP flange |
3" BSP Male / 3" BSP flange |
|
Pipework |
Stainless steel |
||
|
Nozzles |
Brass / Gunmetal Natural Finish |
||
|
Pourer Tube |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Internals |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Screws/Nuts/Washers |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Approximate Weight |
8.5 kg |
16 kg |
24.5 kg |
|
K Factor |
380 |
759 |
1138 |
|
Operating Pressure Range |
1.5 to3 bar |
1.5 to3 bar |
1 .5to3 bar |
|
Flow Rate @2.5 bar |
600L/Min |
1200L/Min |
1800 L/Min |
|
Typical Expansion Ratio at 3% |
25 to 36:1 Or as per demand |
25 to 36:1 Or as per demand |
25 to 36:1 Or as per demand |
Additional Information:
Product Details:
| Minimum Order Quantity | 2 Piece |
| Product Type | FIRE SAFETY |
| Usage/Application | Fire Safety |
| Material | Mild Steel, SS316 & SS304, Carbon Steel, Stainless Steel |
| Color | YELLOW |
| Brand | SAINATH FIRE |
| Capacity | 225 LPM,450LPM,600 LPM,800 LPM,1200 LPM,1600 LPM,2000 LPM. |
| Inlet Size | 2",21/2",3",4",6" |
| Country of Origin | Made in India |
Material : Stainless Steel , SS304 , Mild Steel & SS316
Inlet : Flang Type & BS 63MM Male Coupling
Flow Rate : 200 LPM , Flow Rate : 250 LPM
Flow Rate : 300 LPM , Flow Rate : 400 LPM
Flow Rate : 450 LPM , Flow Rate : 600 LPM
Flow Rate : 800LPM , Flow Rate : 1200 LPM
Pressure : 7 Bar or KG.
Features:
Medium Expansion Foam Generator
All size and all type MFG.
All type and all Size
High grade quality manufacturing
100 % Quality product
Make in india
Warranty guarantee 5 year first time in India provide all type foam making equipment spare parts and complete equipment high grade quality.
Welcome to SAINATH FIRE MUMBAI DELHI -INDIA* Supplier Machine all in State INDIA...
Additional Information:
Product Details:
| Size | 3 inch |
| Material | Stainless Steel |
| Operating Pressure | 3.5 KG/CM2 TO 7 KGCM2 |
| Brand | Sainath Fire |
| Color | N |
| Flow Rate G M | 200 LPM, 225LPM,400LPM,600LPM, 800LPM,1200LPM,1200LPM,1600LPM |
| Inlet Flange | 2",21/2",3",4" |
| Model Name/Number | 0122012 |
| Pressure Psi | 7KG/CM2 |
| Warranty | 2 YEAR |
| I Deal In | New Only |
| Size Mm | 63MM |
| Condition | New |
| Country of Origin | Made in India |
Technical Specification :-
|
Model |
SNF-600-LPM |
SNF-1200-LPM |
SNF-1800-LPM |
|
Nozzle Quantity |
3 |
6 |
9 |
|
Dimension A |
590 |
905 |
920 |
|
Dimension B |
302 |
420 |
520 |
|
Dimension C |
382 |
565 |
648 |
|
Inlet Flange/ Coupling size |
2 " BSP Male inlel/ 2 " BSP flange |
2 1/2" BSP Male / 2 1/2" BSP flange |
3" BSP Male / 3" BSP flange |
|
Pipework |
Stainless steel |
||
|
Nozzles |
Brass / Gunmetal Natural Finish |
||
|
Pourer Tube |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Internals |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Screws/Nuts/Washers |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Approximate Weight |
8.5 kg |
16 kg |
24.5 kg |
|
K Factor |
380 |
759 |
1138 |
|
Operating Pressure Range |
1.5 to3 bar |
1.5 to3 bar |
1 .5to3 bar |
|
Flow Rate @2.5 bar |
600L/Min |
1200L/Min |
1800 L/Min |
|
Typical Expansion Ratio at 3% |
25 to 36:1 Or as per demand |
25 to 36:1 Or as per demand |
25 to 36:1 Or as per demand |
|
|
|||
Additional Information:
Product Details:
| Minimum Order Quantity | 2 Piece |
| Material | SS316 , SS304, Mild Steel |
| Brand | Sainath Fire |
| Medium Type | MEX TYPE |
| Operating Pressure | 7KG/CM2 |
| Color | N |
| Weight Kg | 7KG/CM2 |
| Flow Rate G M | 300LPM , 600LPM, 900LPM, 1200LPM |
| Inlet Flange | 2" ,212" , 3" ,4" ,6" & 63 MM MALE INST. |
| Model Name/Number | SNF33322254 |
| Pressure Psi | 7KG/CM2 |
| Warranty | 2 YEAR |
| I Deal In | New Only |
| Size | ALL TYPE AND ALL SIZE AS PER REQ.. |
| Inlet Size | 3" ,63MM |
| Type | Hydrant System, Sprinklers, Smoke Detectors |
| Working Pressure | 7KG TO 15 KG. |
| Surface Treatment | Polished |
| Usage | Industrial |
Technical Specification :-
|
Model |
SNF-600-LPM |
SNF-1200-LPM |
SNF-1800-LPM |
|
Nozzle Quantity |
3 |
6 |
9 |
|
Dimension A |
590 |
905 |
920 |
|
Dimension B |
302 |
420 |
520 |
|
Dimension C |
382 |
565 |
648 |
|
Inlet Flange/ Coupling size |
2 " BSP Male inlel/ 2 " BSP flange |
2 1/2" BSP Male / 2 1/2" BSP flange |
3" BSP Male / 3" BSP flange |
|
Pipework |
Stainless steel |
||
|
Nozzles |
Brass / Gunmetal Natural Finish |
||
|
Pourer Tube |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Internals |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Screws/Nuts/Washers |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Approximate Weight |
8.5 kg |
16 kg |
24.5 kg |
|
K Factor |
380 |
759 |
1138 |
|
Operating Pressure Range |
1.5 to3 bar |
1.5 to3 bar |
1 .5to3 bar |
|
Flow Rate @2.5 bar |
600L/Min |
1200L/Min |
1800 L/Min |
|
Typical Expansion Ratio at 3% |
25 to 36:1 Or as per demand |
25 to 36:1 Or as per demand |
25 to 36:1 Or as per demand |
|
|
|||
Additional Information:
Product Details:
| Minimum Order Quantity | 1 Piece |
| Material | Stainless Steel |
| Usage/Application | FIRE SAFETY |
| Hose Color | Red, YELLOW |
| Design Type | Standard |
| Material Grade | STAINLESS STEEL & M8ILDB STEEL |
| Lining | With Lining |
| Size | ALL |
| Body Material | SS /MS/BRASS |
| Brand | SAINATH FIRE |
| Capacity | 225 LPM TO 5000 LPM |
| Color | Y / R |
| Inlet Size | 2" , 21/2" , 3" ,4", 6" |
| Country of Origin | Made in India |
Technical Specification :-
Material : Stainless Steel , SS304 & SS316
Inlet : BS 63MM Male Coupling
Flow Rate : 200 LPM , Flow Rate : 250 LPM
Flow Rate : 300 LPM , Flow Rate : 400 LPM
Flow Rate : 450 LPM , Flow Rate : 600 LPM
Flow Rate : 800LPM , Flow Rate : 1200 LPM
Pressure : 7 Bar or KG.
Features:
Medium Expansion Foam pourer
All size and all type MFG.
All type and all Size
High grade quality manufacturing
100 % Quality product
Make in india
Additional Information:
Product Details:
| Minimum Order Quantity | 3 Piece |
| Pressure | 7-10 bar, 6-7 bar, 3-6 bar |
| Material | Stainless Steel, Brass |
| Body Material | SS316,SS304,Mild Steel |
| Brand | SAINATH FIRE - INDIA |
| Inlet | 2",21/2",3",4",6" |
| Outlet | As per Stand. |
| Test Pressure | 30 kg/cm2 |
| Working Pressure | 7kg/cm2 |
| Country of Origin | Made in India |
Technical Specification :-
|
Model |
SNF-600-LPM |
SNF-1200-LPM |
SNF-1800-LPM |
|
Nozzle Quantity |
3 |
6 |
9 |
|
Dimension A |
590 |
905 |
920 |
|
Dimension B |
302 |
420 |
520 |
|
Dimension C |
382 |
565 |
648 |
|
Inlet Flange/ Coupling size |
2 " BSP Male inlel/ 2 " BSP flange |
2 1/2" BSP Male / 2 1/2" BSP flange |
3" BSP Male / 3" BSP flange |
|
Pipework |
Stainless steel |
||
|
Nozzles |
Brass / Gunmetal Natural Finish |
||
|
Pourer Tube |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Internals |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Screws/Nuts/Washers |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Approximate Weight |
8.5 kg |
16 kg |
24.5 kg |
|
K Factor |
380 |
759 |
1138 |
|
Operating Pressure Range |
1.5 to3 bar |
1.5 to3 bar |
1 .5to3 bar |
|
Flow Rate @2.5 bar |
600L/Min |
1200L/Min |
1800 L/Min |
|
Typical Expansion Ratio at 3% |
25 to 36:1 Or as per demand |
25 to 36:1 Or as per demand |
25 to 36:1 Or as per demand |
|
|
|||
Additional Information:
Product Details:
| Minimum Order Quantity | 2 Piece |
| Material | Stainless Steel |
| Usage/Application | Fire Fighting |
| Brand | SAINATH FIRE |
| Capacity | 100-600 |
| Color | N |
| Inlet Size | 63MM MALE INST. |
| Working Pressure | 0.3MPa~1.0MPa |
| Shape | Round |
| Usage | Industrial |
Technical specification:-
|
Operating procedure |
Inlet pressure |
Total water flow (GPM) |
By-Pass flow (GPM) |
Expanded foam (M¿¿¿/min) |
Expansion |
|
By-Pass valve Closed |
7 bar |
240 litres/min |
nil |
136 |
500-725 |
|
By-Pass valve Fully Open |
7 bar |
265 litres/min |
100 litres/min |
150 |
800-1100 |
|
By-Pass valve Fully Open |
10 bar |
315 litres/min |
115 litres/min |
200 |
800-1100 |
Additional Information:
Product Details:
| Minimum Order Quantity | 2 Piece |
| Material | Stainless Steel |
| Usage/Application | FIRE FIGHTING....IN ALL |
| Pressure | 7 KG/CM2 |
| Warranty | 12 MONTH |
| Flow Rate | 200-2000 LPM |
| Brand | SAINATH FIRE ( MAKE IN INDIA) |
| Inlet Size | 63MM,2",2 1/2",3",4" MALE INST. & FLANG TYPE. |
| Type | Outlet Optimum Flow Rate @ 2",2 1/2 Bar 1200 LPM (320 GPM) |
| Working Pressure | 7KG./CM2 |
MEDIUM EXPANSION FOAM POURER
Technical Specification :-
Model | SNF-600-LPM | SNF-1200-LPM | SNF-1800-LPM |
Nozzle Quantity | 3 | 6 | 9 |
Dimension A | 590 | 905 | 920 |
Dimension B | 302 | 420 | 520 |
Dimension C | 382 | 565 | 648 |
Inlet Flange/ Coupling size | 2 " BSP Male inlel/ 2 " BSP flange | 2 1/2" BSP Male / 2 1/2" BSP flange | 3" BSP Male / 3" BSP flange |
Pipework | Stainless steel | ||
Nozzles | Brass / Gunmetal Natural Finish | ||
Pourer Tube | Stainless Steel | Stainless Steel | Stainless Steel |
Internals | Stainless Steel | Stainless Steel | Stainless Steel |
Screws/Nuts/Washers | Stainless Steel | Stainless Steel | Stainless Steel |
Approximate Weight | 8.5 kg | 16 kg | 24.5 kg |
K Factor | 380 | 759 | 1138 |
Operating Pressure Range | 1.5 to3 bar | 1.5 to3 bar | 1 .5to3 bar |
Flow Rate @2.5 bar | 600L/Min | 1200L/Min | 1800 L/Min |
Typical Expansion Ratio at 3% | 25 to 36:1 Or as per demand | 25 to 36:1 Or as per demand | 25 to 36:1 Or as per demand |
Typical Foam Output @ 2.5 bar at 3% | 24 M3/Min | 50 M3/Min | 70 M3/Min |
Additional Information:
Product Details:
| Minimum Order Quantity | 1 Piece |
| Design Type | Standard |
| Hose Color | White |
| Capacity | ALL IN ONE 100% |
| Brand | ALL |
| Size | 63 MM |
| Country of Origin | Made in India |
Technical specification:
|
Operating procedure |
Inlet pressure |
Total water flow (GPM) |
By-Pass flow (GPM) |
Expanded foam (M¿¿¿/min) |
Expansion |
|
By-Pass valve Closed |
7 bar |
240 litres/min |
nil |
136 |
500-725 |
|
By-Pass valve Fully Open |
7 bar |
265 litres/min |
100 litres/min |
150 |
800-1100 |
|
By-Pass valve Fully Open |
10 bar |
315 litres/min |
115 litres/min |
200 |
800-1100 |
Additional Information:
Product Details:
| Minimum Order Quantity | 2 Piece |
| Valve Size | 1/4 |
| Shape | Round |
| Capacity | 225 LPM TO 450 LPM |
| Color | YELOW / RED |
| Inlet Size | 63 MM |
| Brand | SAINATH FIRE |
| Country of Origin | Made in India |
Material : Stainless Steel , SS304 & SS316
Inlet : BS 63MM Male Coupling
Flow Rate : 200 LPM , Flow Rate : 250 LPM
Flow Rate : 300 LPM , Flow Rate : 400 LPM
Flow Rate : 450 LPM , Flow Rate : 600 LPM
Flow Rate : 800LPM , Flow Rate : 1200 LPM
Pressure : 7 Bar or KG.
Features:
Medium Expansion Foam pourer
All size and all type MFG.
All type and all Size
High grade quality manufacturing
100 % Quality product
Make in india
Warranty guarantee 5 year first time in India provide all type foam making equipment spare parts and complete equipment high grade quality...
Additional Information:
Product Details:
| Minimum Order Quantity | 2 Piece |
| Material | STAINLESS STEE & MILD STEEL MOC |
| Design Type | Standard |
| Brand | Sainath Fire |
| Color | YELLOW |
| Inlet Size | 2" , 215" , 3" , 4" & 6" & 63MM MALE INST. |
| Length | AS PER REQ. |
| Working Pressure | 7 KG/CM2 |
| Country of Origin | Made in India |
| Pack Type | WOODEN BOX |
| Application | FIRE SAFETY |
Technical Specification :-
|
Model |
SNF-600-LPM |
SNF-1200-LPM |
SNF-1800-LPM |
|
Nozzle Quantity |
3 |
6 |
9 |
|
Dimension A |
590 |
905 |
920 |
|
Dimension B |
302 |
420 |
520 |
|
Dimension C |
382 |
565 |
648 |
|
Inlet Flange/ Coupling size |
2 " BSP Male inlel/ 2 " BSP flange |
2 1/2" BSP Male / 2 1/2" BSP flange |
3" BSP Male / 3" BSP flange |
|
Pipework |
Stainless steel |
||
|
Nozzles |
Brass / Gunmetal Natural Finish |
||
|
Pourer Tube |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Internals |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Screws/Nuts/Washers |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Approximate Weight |
8.5 kg |
16 kg |
24.5 kg |
|
K Factor |
380 |
759 |
1138 |
|
Operating Pressure Range |
1.5 to3 bar |
1.5 to3 bar |
1 .5to3 bar |
|
Flow Rate @2.5 bar |
600L/Min |
1200L/Min |
1800 L/Min |
|
Typical Expansion Ratio at 3% |
25 to 36:1 Or as per demand |
25 to 36:1 Or as per demand |
25 to 36:1 Or as per demand |
Additional Information:
Product Details:
| Minimum Order Quantity | 2 Piece |
| Material | Stainless Steel |
| Brand | SAINATH FIRE ( MAKE) |
Technical Specification :-
Model | SNF-600-LPM | SNF-1200-LPM | SNF-1800-LPM |
Nozzle Quantity | 3 | 6 | 9 |
Dimension A | 590 | 905 | 920 |
Dimension B | 302 | 420 | 520 |
Dimension C | 382 | 565 | 648 |
Inlet Flange/ Coupling size | 2 " BSP Male inlel/ 2 " BSP flange | 2 1/2" BSP Male / 2 1/2" BSP flange | 3" BSP Male / 3" BSP flange |
Pipework | Stainless steel | ||
Nozzles | Brass / Gunmetal Natural Finish | ||
Pourer Tube | Stainless Steel | Stainless Steel | Stainless Steel |
Internals | Stainless Steel | Stainless Steel | Stainless Steel |
Screws/Nuts/Washers | Stainless Steel | Stainless Steel | Stainless Steel |
Approximate Weight | 8.5 kg | 16 kg | 24.5 kg |
K Factor | 380 | 759 | 1138 |
Operating Pressure Range | 1.5 to3 bar | 1.5 to3 bar | 1 .5to3 bar |
Flow Rate @2.5 bar | 600L/Min | 1200L/Min | 1800 L/Min |
Typical Expansion Ratio at 3% | 25 to 36:1 Or as per demand | 25 to 36:1 Or as per demand | 25 to 36:1 Or as per demand |
Typical Foam Output @ 2.5 bar at 3% | 24 M3/Min | 50 M3/Min | 70 M3/Min |
Additional Information:
